Qhov zoo tshaj plaws tsheb laij teb 60hp LE604 Series – Precision & Fais fab rau me me - mus rau -Medium Farms
Ua rau kev ua tau zoo, tsim los rau ntau yam - koj tus khub zoo tagnrho rau kev txau, tilling, thiab cog

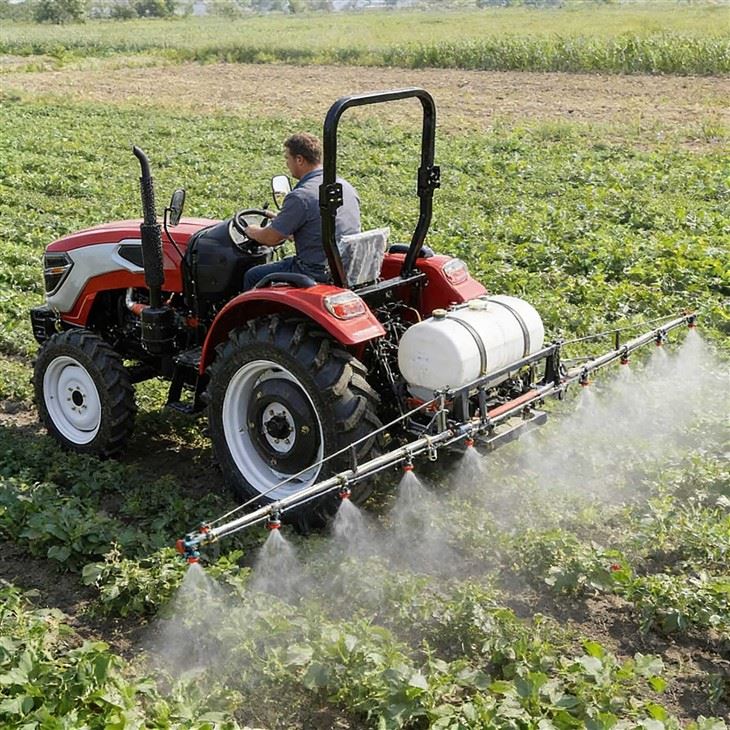

Precision PTO Performance: 6-spline PTO nrog qhov ceev ceev ntawm 540/720 r / min seamlessly txuas mus rau ntau yam kev siv, nrog rau cov tshuaj tsuag, tillers, noob xyaum, thiab cov qoob loo - zoo tagnrho rau kev ua haujlwm zoo li cov qoob loo precision txau pom hauv cov duab.
Adjustable Log Tread: Pem hauv ntej tread xaiv (960, 1000, 1100, 1200 mm) thiab steplessly adjustable rear tread (960-1300 mm) cia koj phim lub log sib nrug rau koj cov qoob loo dav, txo kev puas tsuaj thiab txhim kho efficiency thaum inter- kab ua haujlwm xws li tshuaj tsuag thiab cog.
Compact & Maneuverable: LE604 tus qauv compact ua rau nws maneuverable heev nyob rau hauv me me teb, orchards, thiab greenhouses, thaum tseem xa lub hwj chim xav tau rau hnyav- cov dej num.
Mature qauv thiab central console ua kom yooj yim rau kev khiav lag luam thiab tswj.
Ib qho 8F+8R gearbox uas yooj yim siv thiab tswj;
Ib leeg lossis ob qhov kev ua haujlwm clutches uas yog xaiv tau rau ntau daim ntawv thov; Cov log tsheb, cov log tsheb herringbone, lossis lwm hom log tsheb uas haum rau koj cov kev xav tau thiab kev ua haujlwm yog xaiv tau.
Qhov zoo tshaj plaws tsheb laij teb 4WD hydraulic lub hwj chim steering txo tus neeg teb xov tooj lub zog ua haujlwm thiab pab tswj kev tswj.
High Efficiency: Cov khoom lag luam siab ntawm no 60hp New Fashion Farm Machinery 4wd Tractor yog npaj los muab kev ua haujlwm tiav thiab tau txais txiaj ntsig ntau dua hauv kev ua liaj ua teb.
Vim li cas thiaj xaiv lub tsheb laij teb zoo tshaj 60hp?
LE604 yog tsim los ua kom tau raws li qhov xav tau ntawm cov khoom me me niaj hnub no - mus rau - nruab nrab - kev ua liaj ua teb thoob ntiaj teb. Txawm hais tias koj tab tom ua tiav cov qoob loo txau (raws li qhia hauv cov duab), tiling, cog, lossis sau qoob loo, lub tsheb laij teb no suav nrog lub zog, kev hloov pauv, thiab kev ntseeg tau los txhawb koj cov khoom tsim tau thiab txo cov nqi ua haujlwm. Nws txoj kev tsim kho muaj zog thiab kho tau zoo ua rau nws ua haujlwm ntau yam rau ntau qhov chaw ua liaj ua teb, los ntawm cov teb chaws Esxias Qab Teb Hnub Tuaj mus rau African pob kws thiab South American txiv hmab txiv ntoo orchards.
Tiv tauj peb
Yog xav paub ntxiv ntawm LE604 4WD Wheel Tractor, los yog tham txog kev cai configurations rau koj qhov tshwj xeebua liaj ua teb xav tau, thov hu rau peb pab neeg muag khoom. Peb tos ntsoov yuav pab koj txhawb koj cov khoom ua liaj ua teb.
Txawm hais tias koj tab tom tawg hauv av tshiab nrog plowing lossis kho koj cov noob nrog kev ua haujlwm, LE604 lub zog, traction, thiab kev hloov kho kom ntseeg tau tias kev ua tau zoo. Nws cov kev tsim kho muaj zog thiab cov yam ntxwv kho tau ua rau nws muaj kev vam khom rau txhua yam koj xav tau tillage.
FAQ
60HP LE604 puas tuaj yeem tuav cov nplej ntub dej thiab cov av tsis muaj dej?
Yog lawm. Nws 4WD system thiab 6.5-16 / 11.2-24 log tsheb muab kev sib tw zoo hauv av nkos, tiv thaiv slippage thaum plowing thiab transplanting. Lub 385mm av clearance xyuas kom nws yuav tsis tau daig nyob rau hauv waterlogged paddies.
Puas yog nws tsim nyog rau cov phiaj xwm me me thiab kev ua haujlwm ntawm - kab?
kiag li. Lub compact tsim thiab adjustable log tread (pem hauv ntej: 960-1200mm, rear: 960-1300mm stepless) ua rau nws maneuverable heev, zoo tagnrho rau precision hauj lwm zoo li cog, weeding, thiab cov qoob loo txau nyob rau hauv cov duab.
Roj-ntau npaum li cas rau cov liaj teb me?
Lub cav 60HP (Xinchai/Xichai/YTO) yog tsim los rau kev ua haujlwm zoo roj, uas yog qhov tseem ceeb rau tus nqi- kev ua haujlwm me me. Nws muab lub zog xav tau rau tilling thiab thauj yam tsis muaj roj ntau dhau.
Nws puas tuaj yeem siv cov twj tso kua dej rau kev tso dej?
Yog lawm. 6-spline PTO (540/720 r / min) yog sib xws nrog cov twj tso kua dej, qhov tseem ceeb rau kev tswj cov dej hauv cov nplej thiab zaub ua liaj ua teb thaum lub caij qhuav.
Cim npe nrov: zoo tshaj plaws tsheb laij teb, Tuam Tshoj zoo tshaj plaws tsheb laij teb manufacturers, hoobkas
Parameter
|
Qauv |
SIB 504 |
SIB 604 |
|
Hwj chim (hp) |
50 |
60 |
|
Hom |
Log tsheb laij teb |
|
|
Log tsav tsheb |
4 WD |
|
|
Log tsheb loj (f / r) |
6.5-16/11.2-24 |
|
|
Cav hom |
Xinchai/Xichai/YTO |
|
|
PTO ceev (r / min) |
6 npl 540/720 |
|
|
Pem hauv ntej log tread (mm) |
960,1000,1100,1200 |
|
|
Tsheb log tread (mm) |
960-1300 (tsis hloov kho) |
|
|
F / R qhov hnyav (kg) |
80/92 |
|
|
Iav hloov |
8F+2R |
|
|
Max ceev (km / h) |
39.81 |
|
|
Mini tshem tawm (mm) |
320 |
|
|
Qhov siab tshaj plaws traction (kn) |
13.98 |
15.4 |
|
Max nqa lub zog (kn) |
8.28 |
9.9 |
|
Log puag (mm) |
1860 |
1960 |
|
Qhov hnyav (kg) |
1630 |
1860 |
|
Ua haujlwm qhov ntev (l * w * h) (mm) |
3500*1530*2460 |
3570*1530*2460 |
|
Lus ceeb toom: ◎Lub chassis yog tsim rau 50-70 horsepower. ◎8+2 gears, txhawb zog lub cav fais fab tso zis ncej, ruaj khov zog kis tau tus mob, xaiv tau 8+8 shuttle hloov, ib lub zog hloov mus rau pem hauv ntej thiab rov qab, ua haujlwm yooj yim thiab ceev dua. ◎ Lub zog siab rear qag, ib nrab lub plhaub plhaub tau ntxiv thiab nthuav dav, ntau dua los ntawm cov neeg siv. ◎Ua kom tus nres nyob rau hauv siab load ua rau zoo dua thiab ruaj khov braking kev ua tau zoo. ◎ Dual roj tso tsheb hlau luam, roj muaj peev xwm loj, lub sijhawm ua haujlwm ntev. ◎Domestic renowned xyaw nrog loj cia torque thiab muaj zog zog. ◎ Iav hloov nrog lub tes tsho sib koom ua haujlwm kom hloov tau yooj yim dua. |
||
